Jetson Orin NX/Nano Carrier Board – Dual GbE, 4K DP, GPIO, CAN, PoE

Unlock the Full Potential of Your Jetson Orin Module

The NVIDIA Jetson Orin NX and Orin Nano modules are some of the most powerful edge AI compute platforms available — but to deploy them in a real project, you need a carrier board that exposes all their capabilities. This compact baseplate does exactly that, breaking out dual Gigabit Ethernet, USB 3.0, DisplayPort 4K output, CAN bus, GPIO, PoE, and camera interfaces into a dense, well-labelled board measuring just 103 × 90.5mm (4.06 × 3.56 inches).

Whether you're building an autonomous robot, an industrial vision system, a network appliance, or an edge AI inference node, this carrier board gives you the connectivity to make it happen.

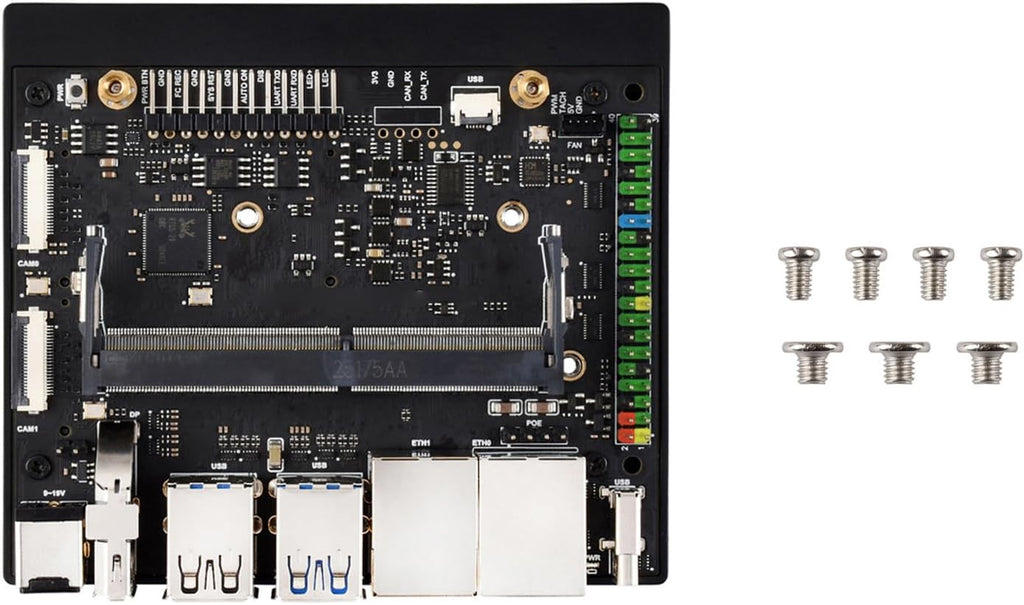

Connectivity at a Glance

• 2× Gigabit Ethernet (ETH0 + ETH1) with PoE support
• 2× USB 3.0 Type-A + additional USB ports
• 1× DisplayPort — 4K high definition output
• 2× MIPI CSI Camera connectors (CAM0 + CAM1)
• CAN bus (CAN_RX / CAN_TX)
• 40-pin GPIO header (colour-coded: PWM, TACH, GND and more)
• UART (TX/RX), SYS RST, PC REC, PWR BTN, LED headers
• Fan connector (PWM fan control)
• DC power input: 9–18V

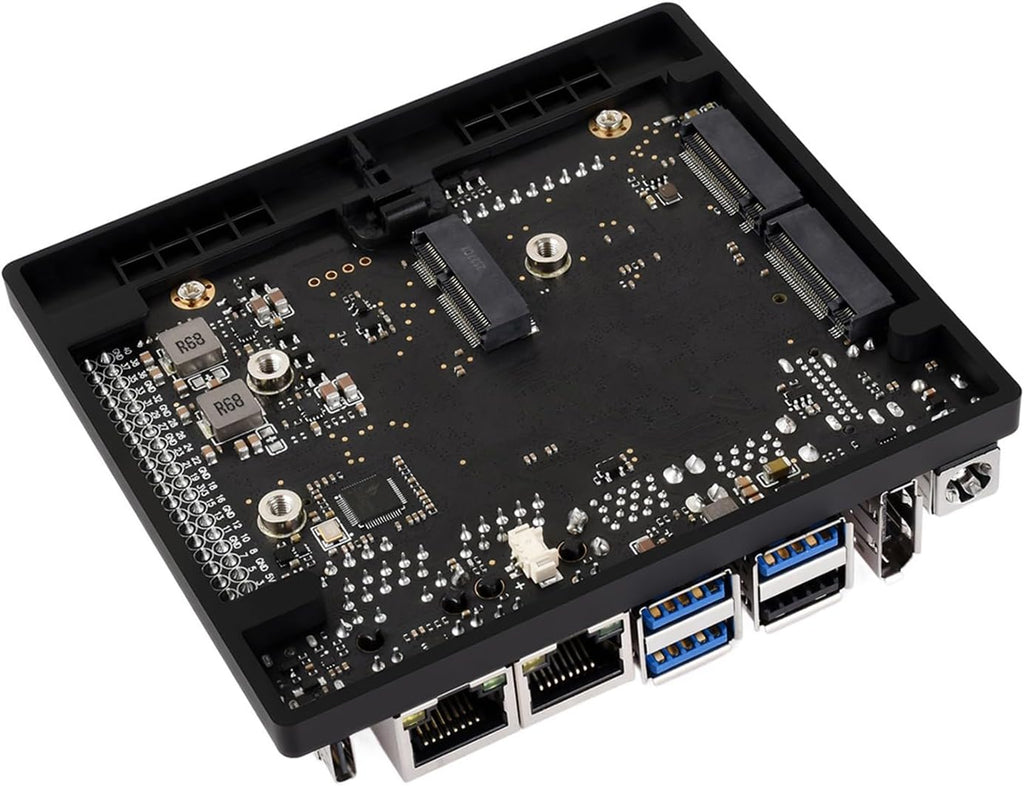

• M.2 slot for NVMe SSD or Wi-Fi/Bluetooth module

Compact & Deployable

At just 103 × 90.5mm, this carrier board fits into tight enclosures and custom chassis. The included mounting screws and the moulded plastic backplate make it easy to secure in a project box or mount to a panel. The colour-coded GPIO terminal block makes wiring to external hardware fast and error-resistant.

Key Specs

• Compatible modules: NVIDIA Jetson Orin NX / Orin Nano

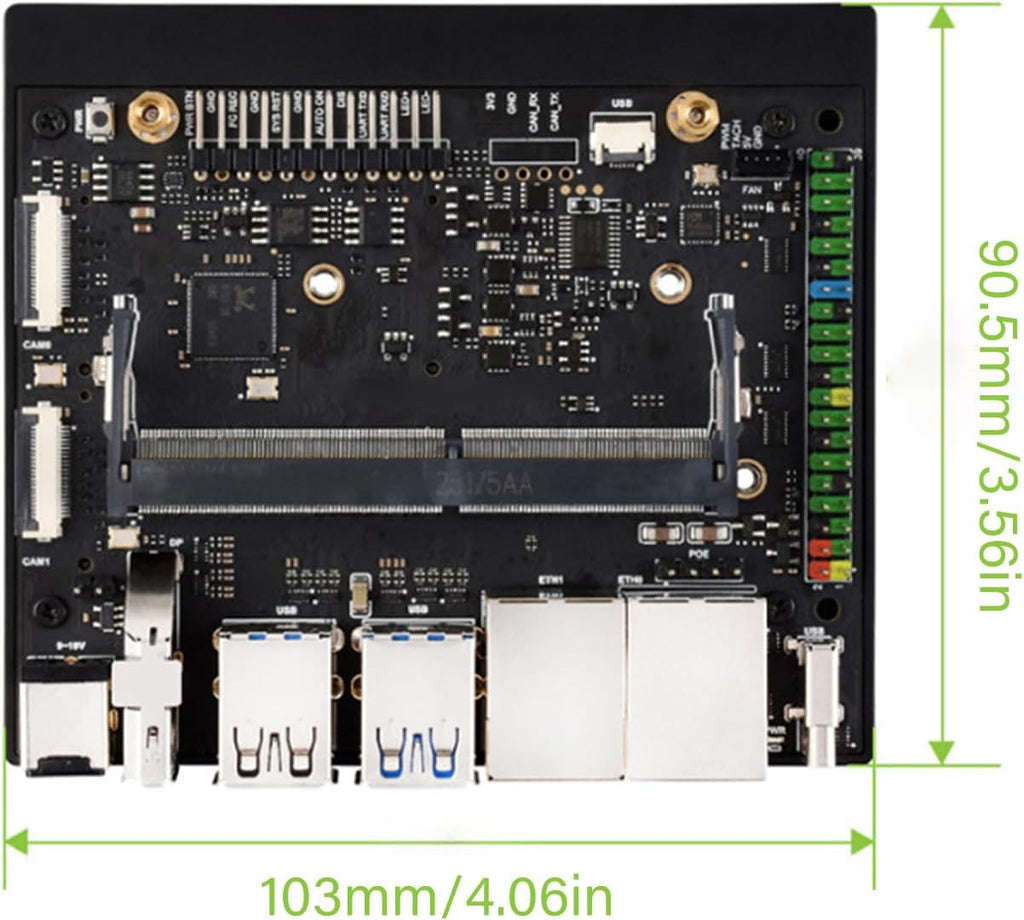

• Dimensions: 103mm × 90.5mm
• Power input: 9–18V DC
• Display: DisplayPort (4K output)
• Networking: Dual GbE with PoE
• Storage expansion: M.2 slot
• GPIO: 40-pin colour-coded terminal block

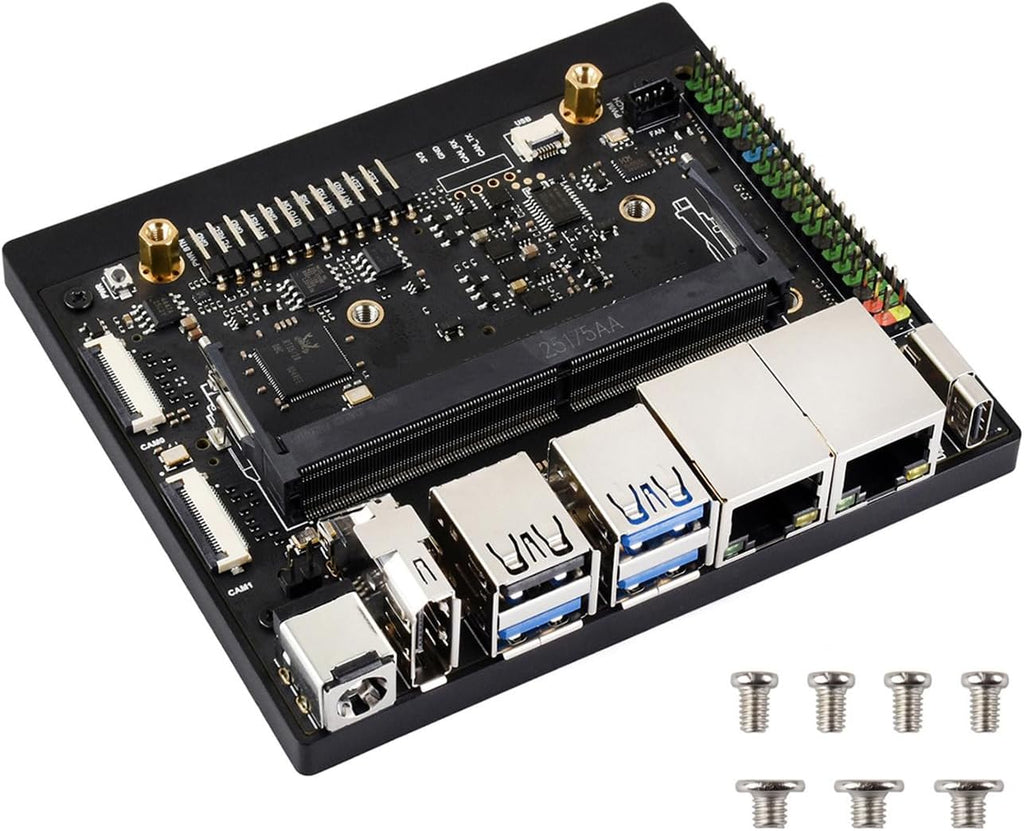

• Includes: Carrier board, mounting screws

Note: Jetson Orin NX / Nano module not included. Must be purchased separately.
